논문 국내 국제전문학술지(SCI급) A New Perspective on the Advanced Microblade Cutting Method for Reliable Adhesion Measurement of Composite Electrodes
- 학술지 구분 국제전문학술지(SCI급)
- 게재년월 2022-05
- 저자명 Jihun Song, Dong Ok Shin, Seoungwoo Byun, Youngjoon Roh, Cheol Bak, Juhye Song, Jaecheol Choi, Hongkyung Lee, Tae-Soon Kwon, Young-Gi Lee, Myung-Hyun Ryou, Yong Min Lee
- 학술지명 Journal of Electrochemical Science and Technology
- 발행처명 The Korean Electrochemical Society
- 발행국가 국내
- 논문언어 외국어
- 전체저자수 12
- 논문 다운로드 링크(외부) https://koreascience.kr/article/JAKO202216054085525.page
- 연구분야 공학 > 화학공학
논문 초록 (Abstract)

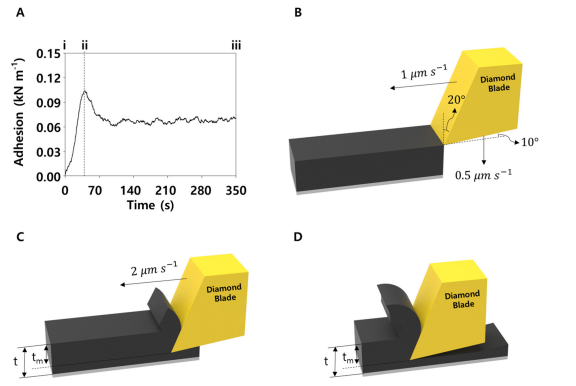

The microblade cutting method, so-called SAICAS, is widely used to quantify the adhesion of battery composite electrodes at different depths. However, as the electrode thickness or loading increases, the reliability of adhesion values measured by the conventional method is being called into question more frequently. Thus, herein, a few underestimated parameters, such as friction, deformation energy, side-area effect, and actual peeing area, are carefully revisited with ultrathick composite electrodes of 135 ㎛ (6 mAh cm-2). Among them, the existence of side areas and the change in actual peeling area are found to have a significant influence on measured horizontal forces. Thus, especially for ultrahigh electrodes, we can devise a new SAICAS measurement standard: 1) the side-area should be precut and 2) the same actual peeling area must be secured for obtaining reliable adhesion at different depths. This guideline will practically help design more robust composite electrodes for high-energy-density batteries.
