논문 해외 국제전문학술지(SCI급) Three-dimensional adhesion map based on surface and interfacial cutting analysis system for predicting adhesion properties of composite electrodes
- 학술지 구분 국제전문학술지(SCI급)
- 게재년월 2016-09
- 저자명 Kyuman Kim, Seoungwoo Byun, Inseong Cho, Myung-Hyun Ryou, Yong Min Lee
- 학술지명 ACS applied materials & interfaces
- 발행처명 American Chemical Society
- 발행국가 해외
- 논문언어 외국어
- 전체저자수 5
- 논문 다운로드 링크(외부) https://doi.org/10.1021/acsami.6b06344
- 연구분야 공학 > 화학공학
논문 초록 (Abstract)

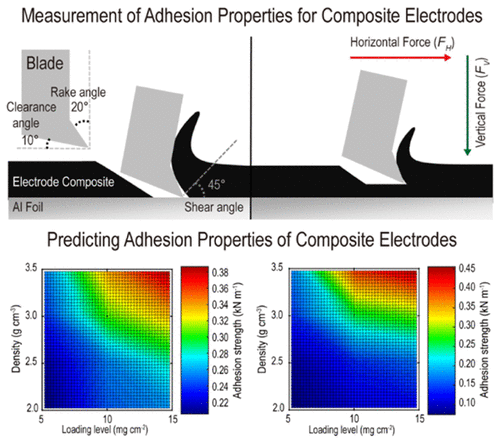

Using a surface and interfacial cutting analysis system (SAICAS) that can measure the adhesion strength of a composite electrode at a specific depth from the surface, we can subdivide the adhesion strength of a composite electrode into two classes: (1) the adhesion strength between the Al current collector and the cathode composite electrode (FAl–Ca) and (2) the adhesion strength measured at the mid-depth of the cathode composite electrode (Fmid). Both adhesion strengths, FAl–Ca and Fmid, increase with increasing electrode density and loading level. From the SAICAS measurement, we obtain a mathematical equation that governs the adhesion strength of the composite electrodes. This equation revealed a maximum accuracy of 97.2% and 96.1% for FAl–Ca and Fmid, respectively, for four randomly chosen composite electrodes varying in electrode density and loading level.
